flux2/docs/flux2_with_prompt_upsampling.md

Prompt upsampling with FLUX.2

Prompt upsampling uses a large vision language model to expand and enrich your prompts before generation, which can significantly improve results for reasoning-heavy and complex generation tasks.

When to use prompt upsampling

Prompt upsampling is particularly effective for prompts requiring reasoning or complex interpretation:

• Text generation in images: Creating memes, posters, or images where the model needs to generate creative or contextually appropriate text
• Image-based instructions: Prompts where the input image contains overlaid text, arrows, or annotations that need to be interpreted (e.g., "follow the instructions in the image", "read the diagram and generate the result")
• Code and math reasoning: Generating visualizations of algorithms, mathematical concepts, or code flow diagrams where logical structure is important

For simple, direct prompts (e.g., "a red car"), prompt upsampling may not provide significant benefits.

Methods

We provide two methods for prompt upsampling:

1. API-based prompt upsampling (recommended)

API-based prompt upsampling via OpenRouter generally produces better results by leveraging more capable models.

Set your API key as an environment variable:

export OPENROUTER_API_KEY="<api_key>"

Then run the CLI with upsampling enabled:

export PYTHONPATH=src
python scripts/cli.py --upsample_prompt_mode=openrouter

You can switch between different models using --openrouter_model=<model_name>.

Alternatively, you can just start the CLI via

export PYTHONPATH=src
python scripts/cli.py

and choose your prompt upsampling model interactively.

Example output:

Prompt: "Make a meme about generating memes with this model"

2. Local prompt upsampling

Local prompt upsampling uses Mistral-Small-3.2-24B-Instruct-2506, which is the model we use for text encoding in FLUX.2 [dev]. This option requires no API keys but may produce less detailed expansions.

To enable local prompt upsampling, use --upsample_prompt_mode=local.

Example:

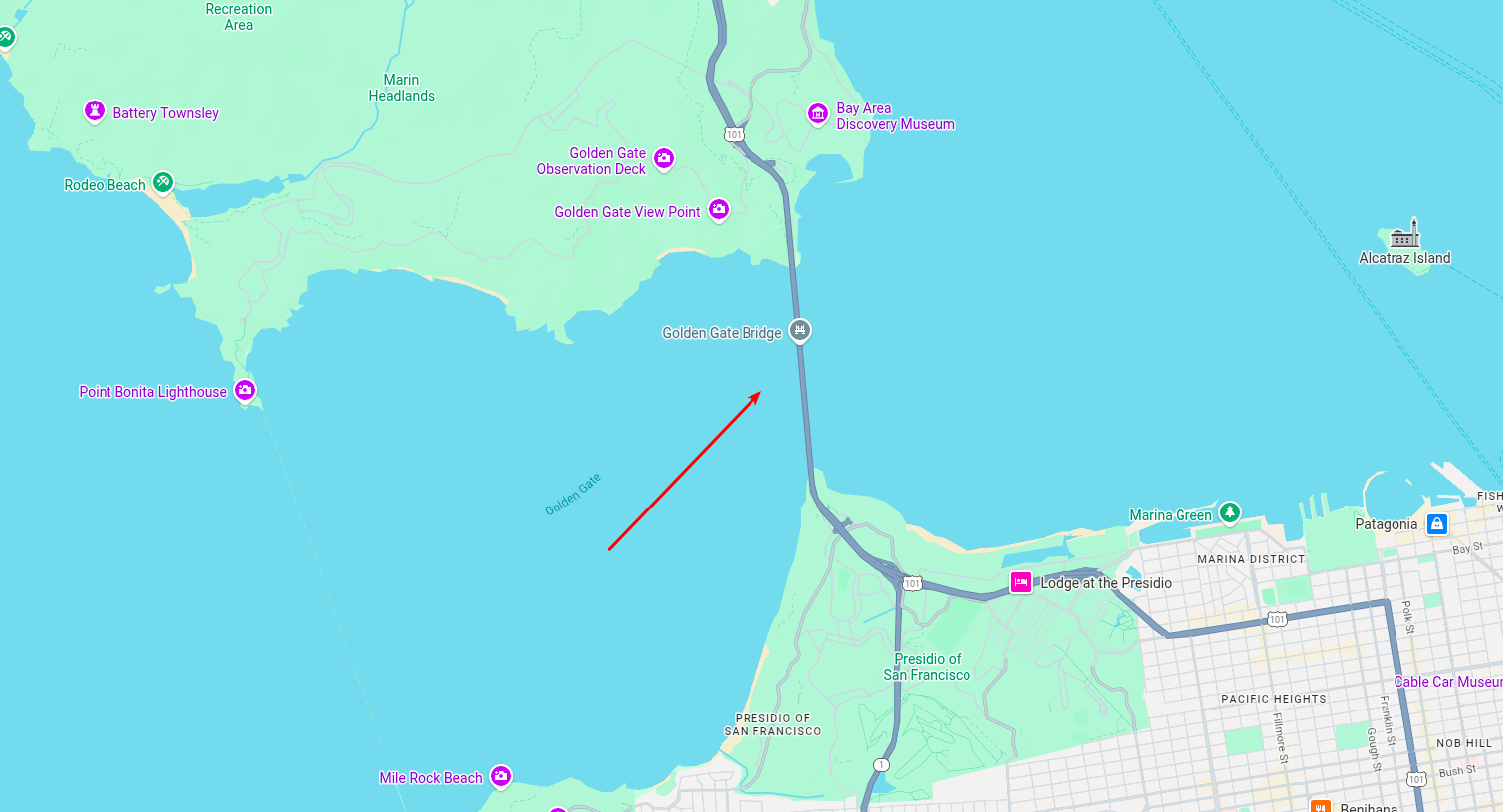

Prompt: "Describe what the red arrow is seeing"
Input	Output
